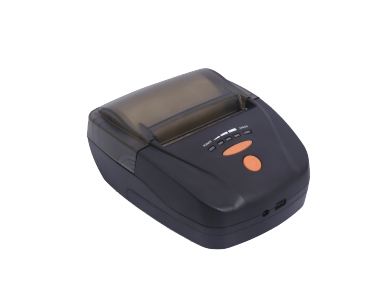

HGRT HGS 58M Portable Printer

HGS 58M / HGS 80M are high speed portable thermal printers designed for mobile bill applications.
Integrated into a number of cutting-edge technologies
speed printing, printing density intelligent adjustable both models are real combination of technology and
practical
Features:  Support 1D, 2D bar code printing
 While compatible with Windows, Linux, Android and IOS systems
 Support USB, COM, communications
 Supports sound and light reminder when  Optional Cover for both models

Specification:

Print  parameter	Printing Method	Thermal Line
	Printing Width	48mm	72mm
	Resolution	384 dots/line（8dots/mm，203dpi）
	Printing Speed	70mm/sec	90mm/sec

	Interface	USB	USB, RS232
	Line spacing	3.75mm（Can adjust line spacing by command）
	Line No.	Font A:32 character /Line

Font B:42 character/Line

Simple, traditional Chinese-16 lines

Font A:48 character /Line

Font B:64 character/Line

Simple, traditional Chinese-24 lines

Character The standard GB18030 simplified / traditional Chinese characters library Character Size ANK character，Font A：1.5×3.0mm（12×24 点）

Font B：1.1×2.1mm（9×17 点） Simplified/Traditional：3.0×3.0mm(24×24 点）

Bar code character Extended  character set PC437、 KataKana、 PC850、 PC860、 PC863、PC865、 WPC1251、 PC866、

MIK、PC755、Iran、Reserve、PC862、WPC1252、WPC1253、PC852、PC858、Iran II、Latvian、PC864、 ISO-8859-1、PC737、

WPC1257、Thai、PC720、PC855、PC857、WPC1250、PC775、WPC1254、WPC1255、 WPC1256、WPC1258、ISO-8859-2、ISO-8859-3、ISO-8859-4、ISO-8859-5、

ISO-8859-6、ISO-8859-7、ISO-8859-8、ISO-8859-9、ISO-8859-15、Thai2、PC856、

Bar code 1D：UPC-A;UPC-E;EAN-13;EAN-8;CODE39;CODE93；CODABAR;ITF25;CODE128

2D：PDF417、QRCODE、DATA MATRIX

Graphics printing Graphics printing Supports bitmap download and print Power saving

Mode

Smart power saving Yes Variable  speed printing Yes Detection Sensor No Paper Detection Indicator Power Display Yes Charge Indicator Yes Lack of paper Yes Beep No Paper, Abnormal Printing Paper Type Thermal Width 57.5±0.5mm 79.5±0.5mm Thickness ≤0.12mm Diameter ≤40mm Feed Easy（Clamshell feed） Print Command Commands ESC/POS Power Type USB Capacity 2200mAh/7.4V 2500mAh/7.4V Charger DC 8.4V/1A Buffer Input 4KB NV Flash 40KB Physical features Weight 200G Box Dimension 0.25 kg ( net ) / 0.65 kg ( pack ) Environment Operating Temperature: 0 ~ 50 ℃, humidity: 10 ~ 80 % Storage Temperature: -20 ~ 60 ℃, humidity: 10 ~ 90 % ( no dew ) Reliability Print head life 50KM（Printing Density≤12.5） Software Driver Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1, Win 10
