58mm portable mobile bluetooth thermal printer PTP-II
Cashino PTP-II is designed especially for those transaction applications where small size, fast printing and dependability while staying
in budget are vital. Delivering the key features and communication methods, the PTP-II has the flexibility to meet the unique, industry-specific receipt printing and ease of use required to keep up with the mobile worker's long and demanding shift.
Key features & Benefits:
1. Compact design. Mini size and light weight.
2. Auto sleep/auto start/Auto power off for power saving, extension use.
3. Multi-interfaces: RS232/USB/Bluetooth/Wifi/RAW-IR
4. 2000mAh li-ion battery, 8hrs of working time and 72hrs of standby time.
5. 1600mAh li-ion battery is available as option.
6. Support Powered by USB, reduce the cost for you
7. With protective case, can reach 1.2 meter drop resistance. Also easily and comfortably carry the printer.
8. A printer can be connected to 7 sets of mobile device via bluetooth.(optional function)
Specification:
| Model No. | PTP-II | |
| Printing method
Printing speed Resolution Printing width |
Thermal line printing
50-80mm/s 384 dots/line 48mm |
|
| Character | Character Set
Print Font |
ASCII,GB2312-80(Chinese)
ANK:8×16,9×17,9×24,12×24,16×18 GBK:24×24 |
| Paper spec. | Paper Type
Roll Diameter Paper Width Paper Thickness |
Thermal paper
40mm (Max.) 57.5±0.5mm 60-85um |
| Paper supply method | Drop-in easy loading | |
| Reliability | MCBF
Life cycle time |
15 million lines
50km(printing density under 12.5%)/100 million pulses |
| Barcode | 1D
2D |
EAN-13,EAN-8,CODE39,CODE93,
CODE128,CODEBAR,ITF,UPC A,UPC-E QR CODE |
| Text and graphic support
Command Sensor |
Figure, symbol, graph, curve, icon, multi-languages
Compatible with ESC/POS command set No paper detection function |
|
| Interface | Wire
Wireless |
RS232,Mini USB
RAW-IR/Bluetooth2.0 or 4.0/Wifi/Dual BT(2.0+4.0) |
| Physical | Weight
Dimension(WxLxH) Color |
216g (Including battery)
79x112x45mm Black/Dark grey/White |

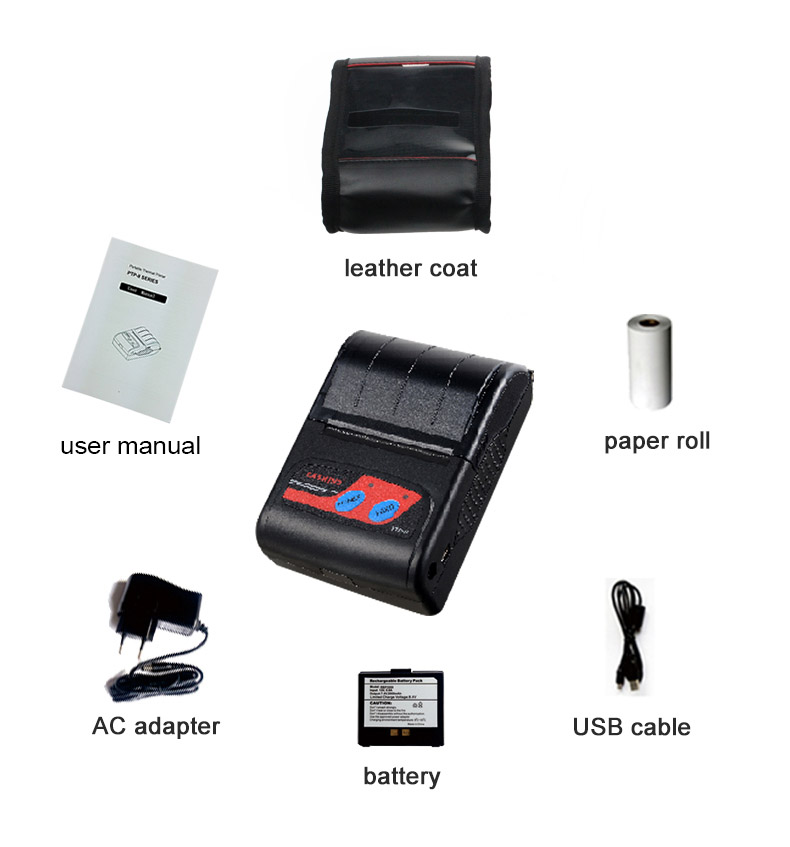

| Accessories | Standard
Optional |
Li-ion battery, AC adapter, USB cable,
paper roll, user manual Serial cable/CD/Car charger/Protective Case |
1. Mobile POS/Retail
2. Parking lot
3. Logistics
4. Ship transport
5. On-site repair/Installation
6. Warehouse/Rear service
7. Utility billing/Meter reading
